Automatic bag packing machine VFFS liquid sachet filling/sauce pouch filing/jam bag packing machine single nozzle bagging equipment

Automatic bag packing machine VFFS liquid sachet filling/sauce pouch filing/jam bag packing machine single nozzle bagging equipment

Description:Bag packing machine VFFS liquid sachet filling/sauce pouch filing/jam bag packing machine single bagging equipmentModel GP-60YBCapacity 30-50bags/minRange of measurement 5-350mBag Size(L)4

  • Product Name: Automatic bag packing machine VFFS
  • Brand: Gerong
  • Model: GP-60YB
  • Machine Type: VFFS Machinery
  • Packaging Type: Liquid bag products
  • Dimension: (L)850*(W)780*(H)1800mm

Description:

Bag packing machine VFFS liquid sachet filling/sauce pouch filing/jam bag packing machine single bagging equipment

Model GP-60YB
Capacity 30-50bags/min
Range of measurement 5-350m
Bag Size(L)40-150mm (W)40-100mm
Sealing type (three/Four/back sides seal )
Power 1.2KW
Voltage 22V/50HZ
Packing material
Paper/the polyethylene,polyester/aluminum foil/polyethylene,nylon/polyethylene,tea filter paper,etc
Net weight 200kgs
Gross weight 230kgs
Overall Dimension (L)750*(W)700*(H)1650mm
After Packing (L)850*(W)780*(H)1800mm

Liquid packaging machine YX-60Y:

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

1.Main features&characteristic of packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machineryFilling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

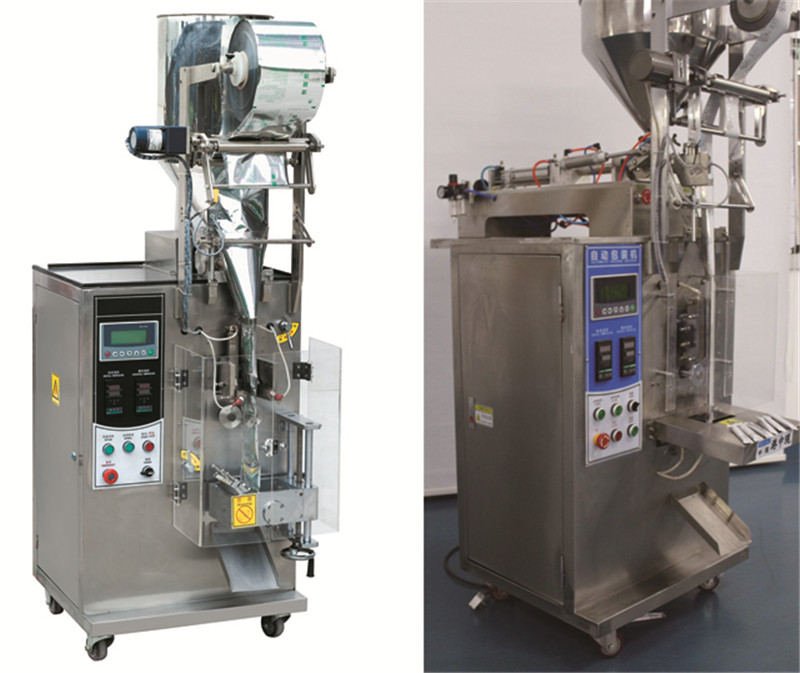

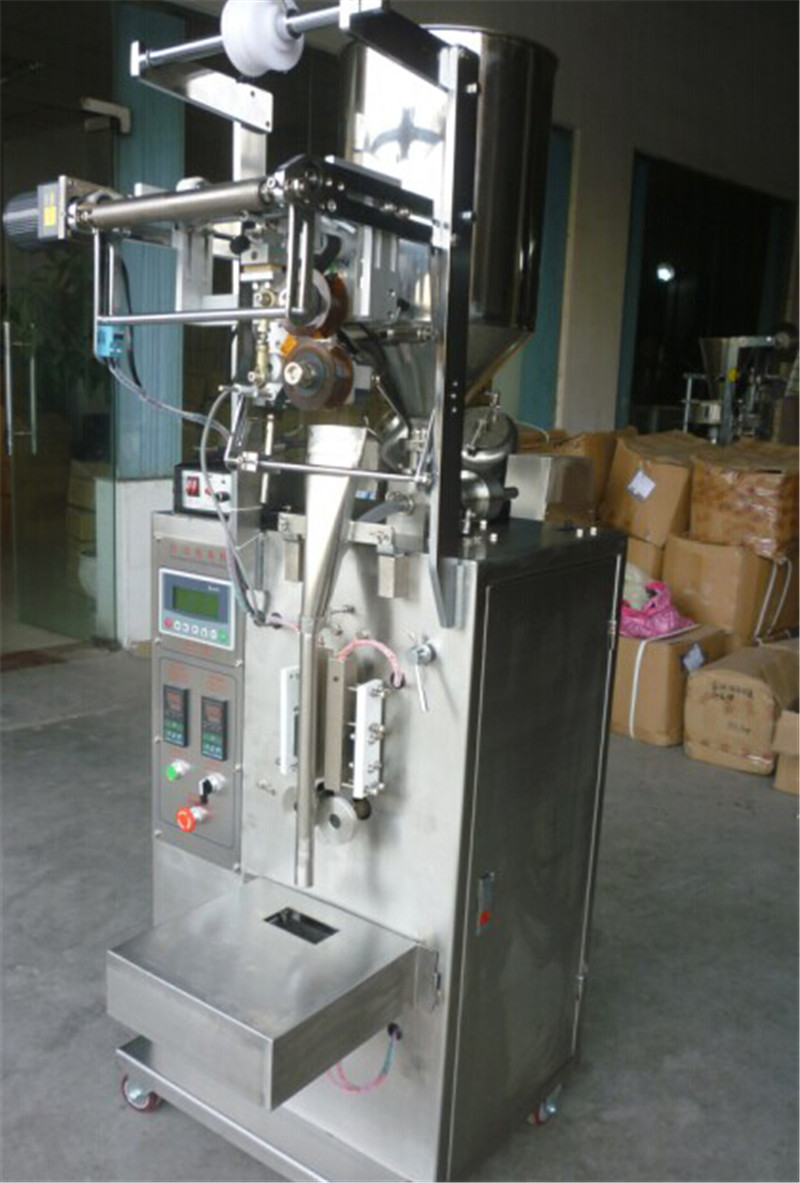

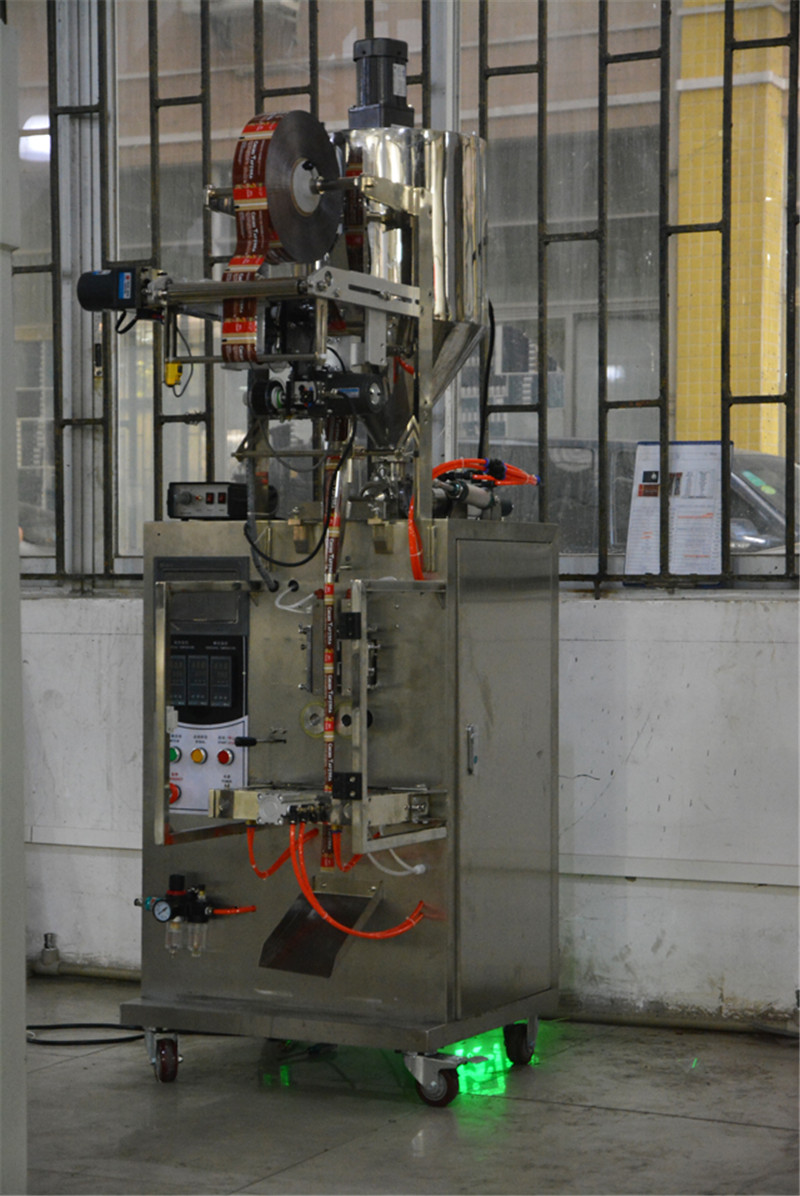

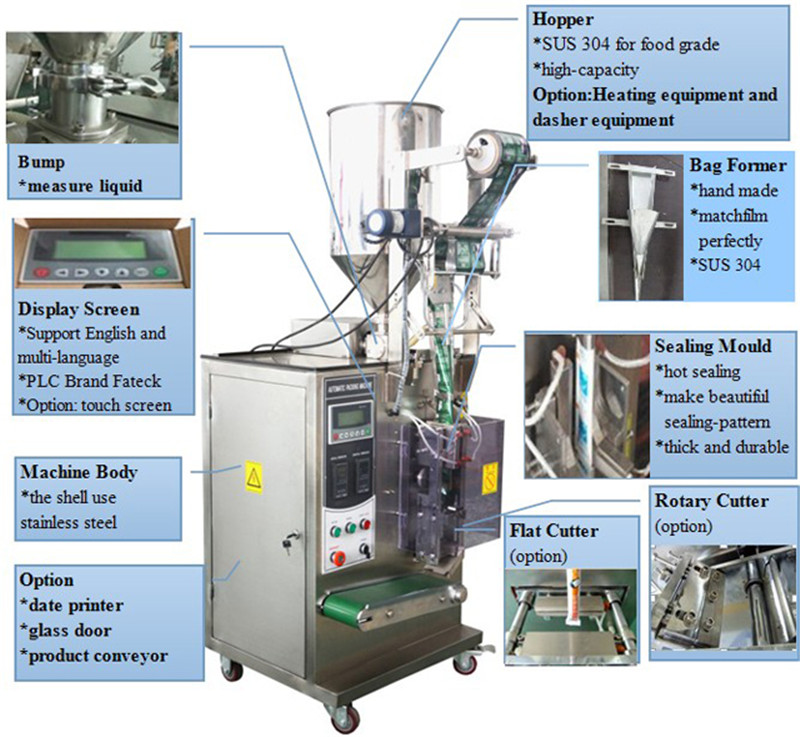

ILLustration of model GP-60YB VFFS packing form fill seal for small bags less than 200ml

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

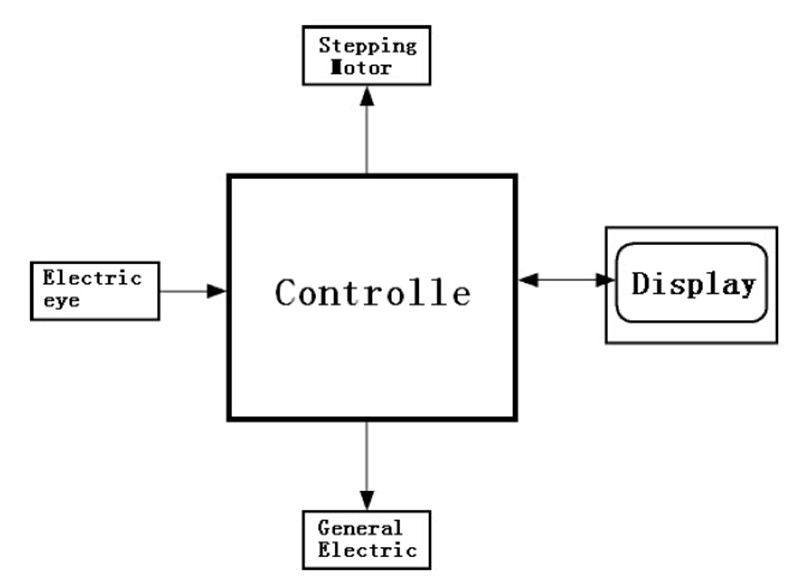

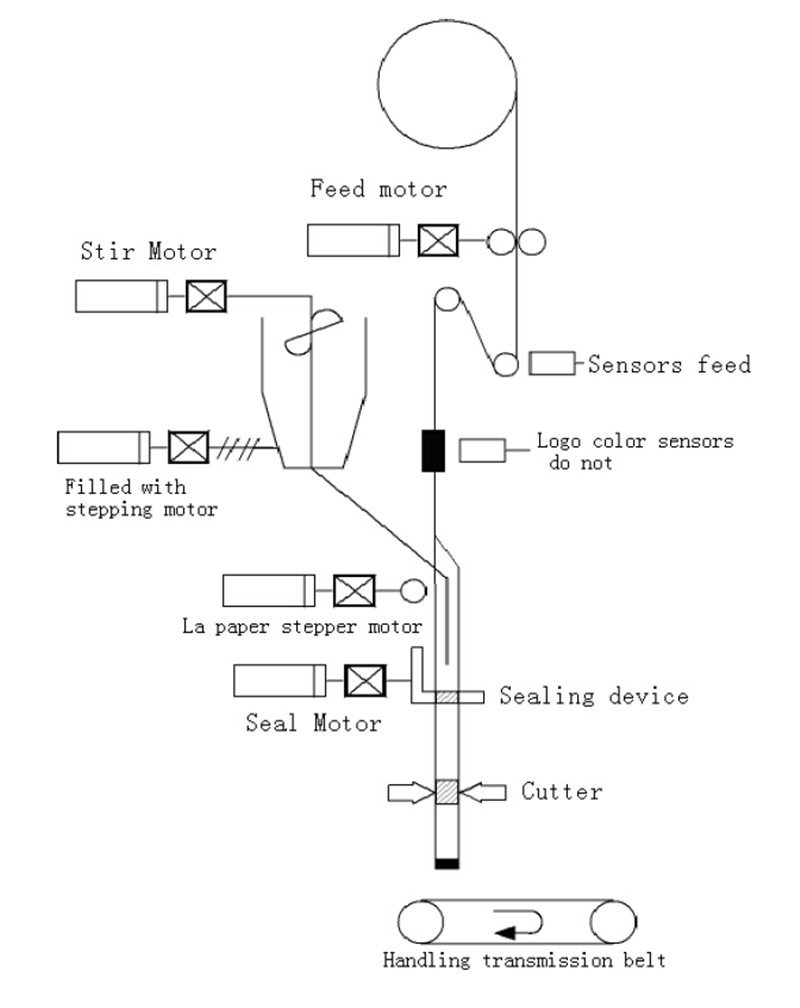

constitution of packing machine in main block

►Automatic finish weight, bag-making, filling, sealing, cutting, counting, lot number and so on;
►Automatic optimization match with all the program, this system can alternate the length of bag , thus it is easy and precise;
►It has color system controller, so can get the complete trade mark design;

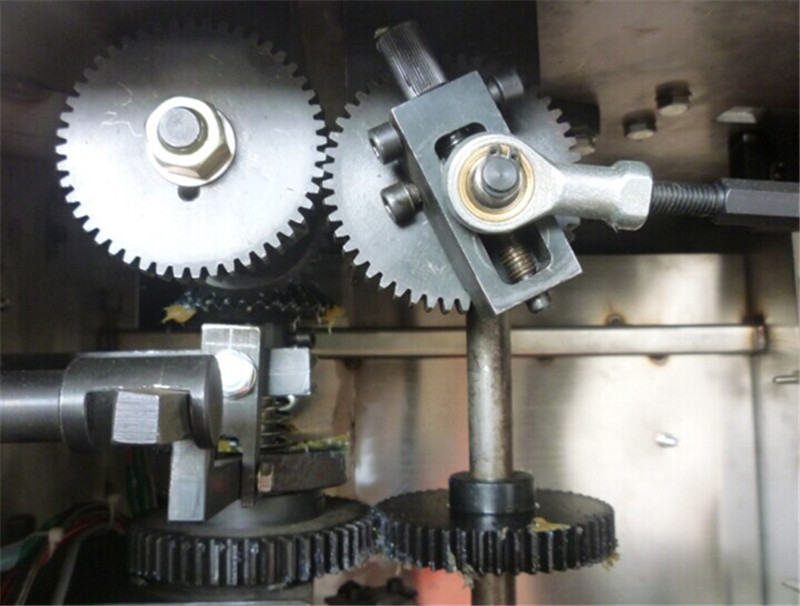

►The length of bag and bag packing speed can be alternated by chain-gear stepless speed various without change spare part;

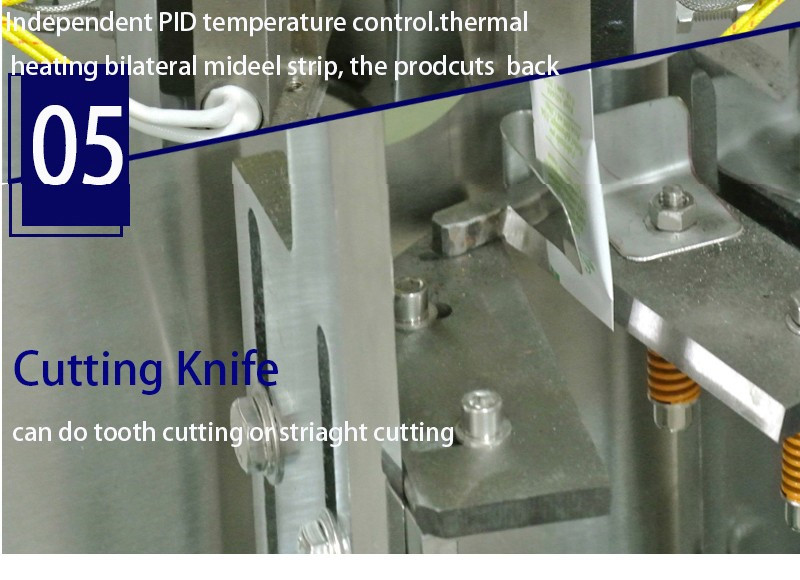

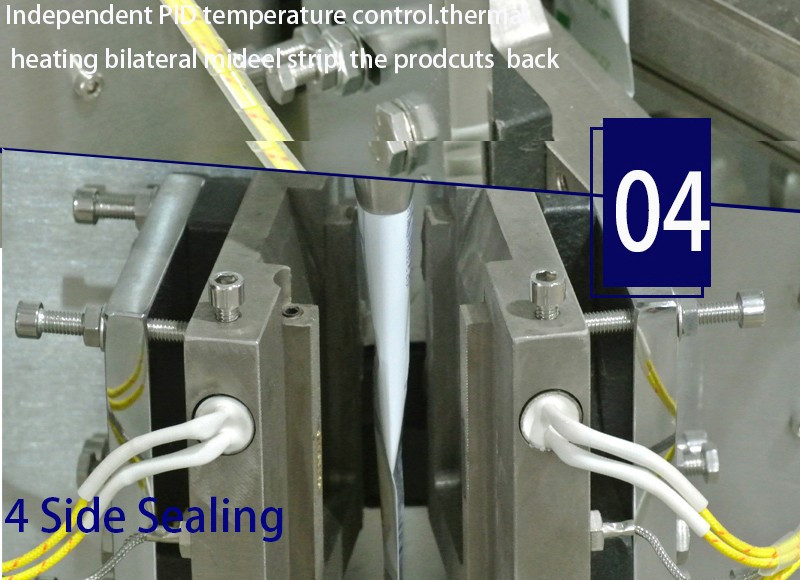

►Unique in-laidembedded mouth sealing, enhanced hot sealing mechanism;
►Intelligent temperature control by temperature controller, featuring fine heat balance, fine packaging performance, low noise, clear sealing texture and strong sealing performance ;
►The main parts of the machine and contacted material is food type stainless and other is common stainless ;
►The machine adopt liquid /paste pump to weight and measure , the seal type is four sides seal with easy tearing ;
►Control system  is Mitsubishi PLC from Japan .
2. Scope of application :
This machine is suitable for automatic packaging of paste or liquid of foods , medicine and chemicals , such as pesticide , shampoo ,body foam bath lotion , facial cream , ingredient oil , fruit sauce , tomato ketchup and honey and so on.
Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

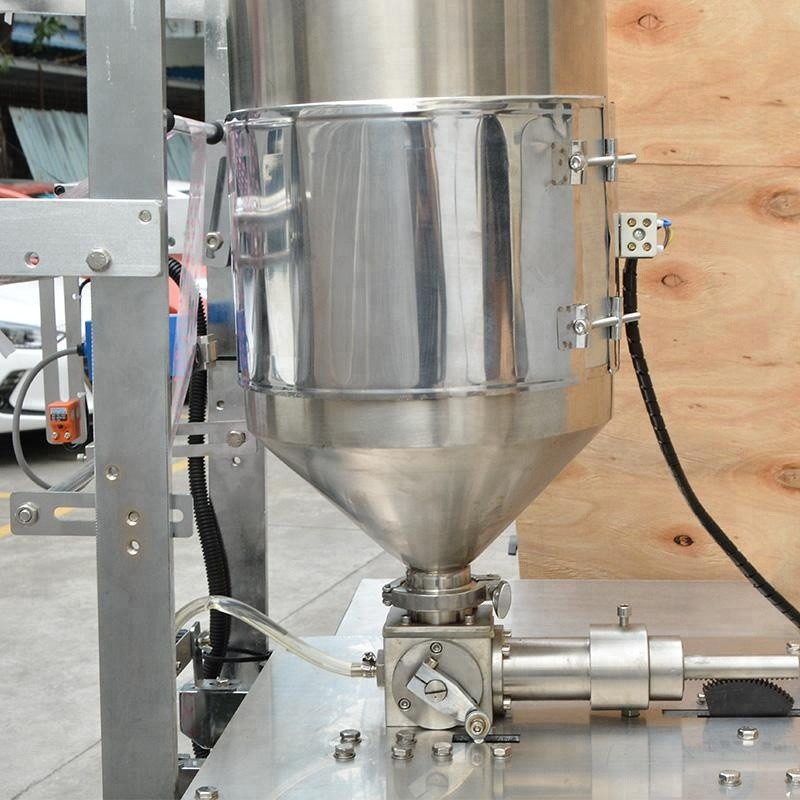

Machine for high viscosity materials like honey chocolate with heating mixing function during filling
3. The features of full-automatic VFFS liquid packing machine model GP-60YB:


Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

►Speed Limitless: Packing speed shall be limitless arranged in some extend , which can best match the steps of making bag/fulfilling/sealing and cutting .
►The bag length can be set free at some specific range , using the “Bujin” Motor , making bags stable and the speed can be controlled .
►The process of bag-made can reach self-automatic inspecting/location/sealing and cutting when there are the signs of color locating in packing films .
►Equipment itself has the function of self-diagnosing and error-pointing .
►Controlling temperature by high exact PID , which ensure the sealing quality of different packing film material and will be in more stable of hot sealing .
►Conveniently operate and repair , because of its intermittent simple structure .
►Common using available :Packing 1-100ml in a bag by changing the measure glass .
►Automatically print production lot No. , and adding the easy-tear type convenient .
►Using the superior steel parts , quality to be stable , noise to be bitter , error rate to be low and service life to be long .
Good appearance , smart and unique , the steel of contacting material is stainless steel or innoxious and corrosion resistance plastic , which reaches the packing requirement of food and medicine ( say GMP ) , especially available in the industries  of food , medicine .
4. Specification of liquid packing machine

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery
Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

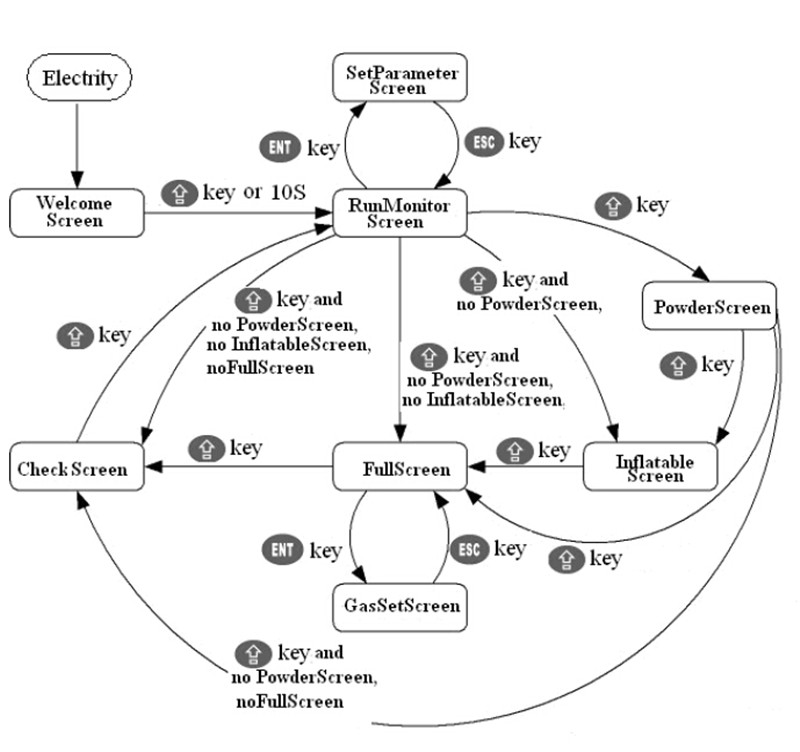

Touch screen controlling information and working illustration

Model

YX-60Y

Capacity

30-50bags/min

Range of measurement

                  50-100ml

Bag Size

(L)40-150mm   (W)40-100mm

Sealing type

 ( Four/back sides seal )

Power

1.2KW

Voltage

380V/50HZ

220V/50-60HZ

Packing material

Paper/the polyethylene,polyester/aluminum foil/polyethylene,nylon/polyethylene,tea filter paper,etc

Net weight

200kgs

Gross weight

230kgs

Overall Dimension

(L)750*(W)700*(H)1650mm

After Packing

(L)850*(W)780*(H)1800mm

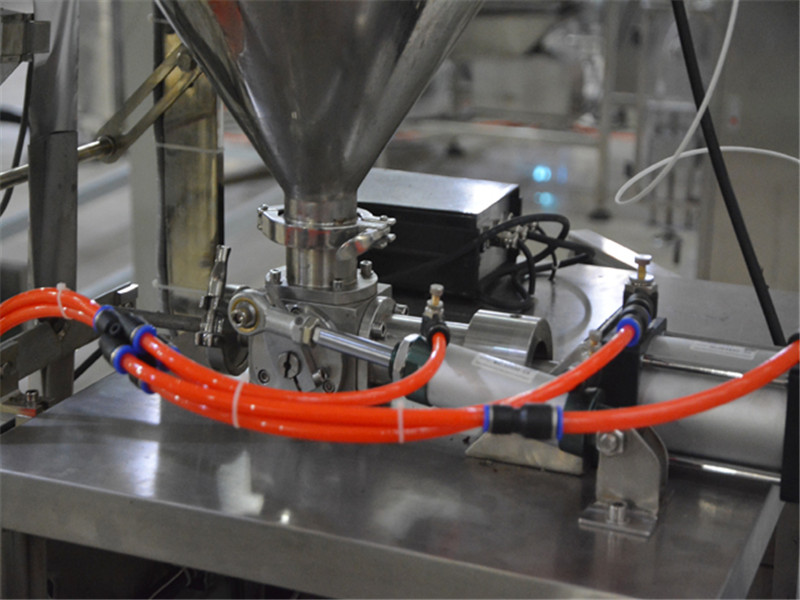

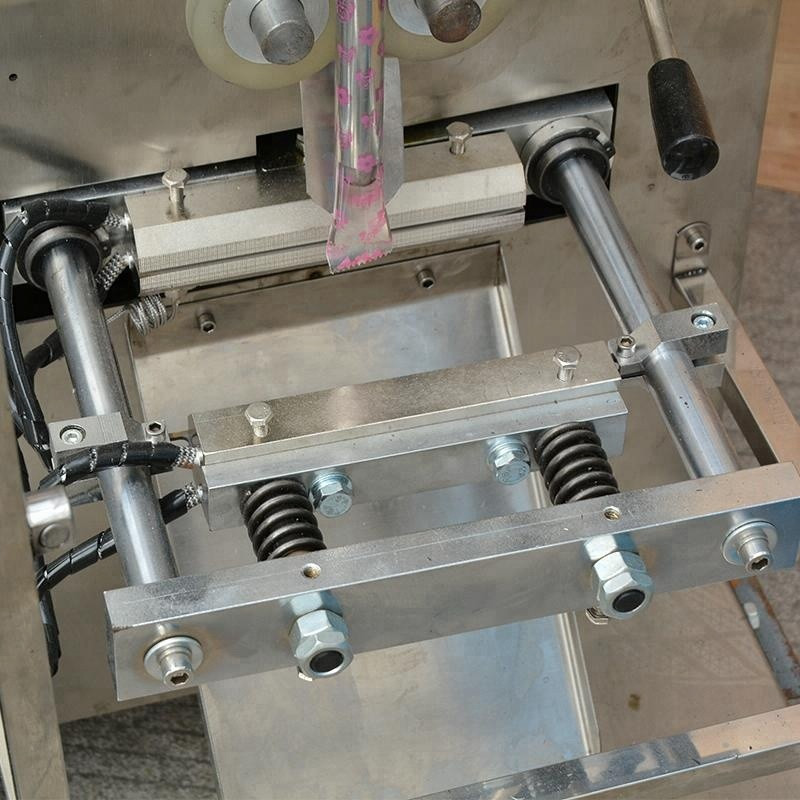

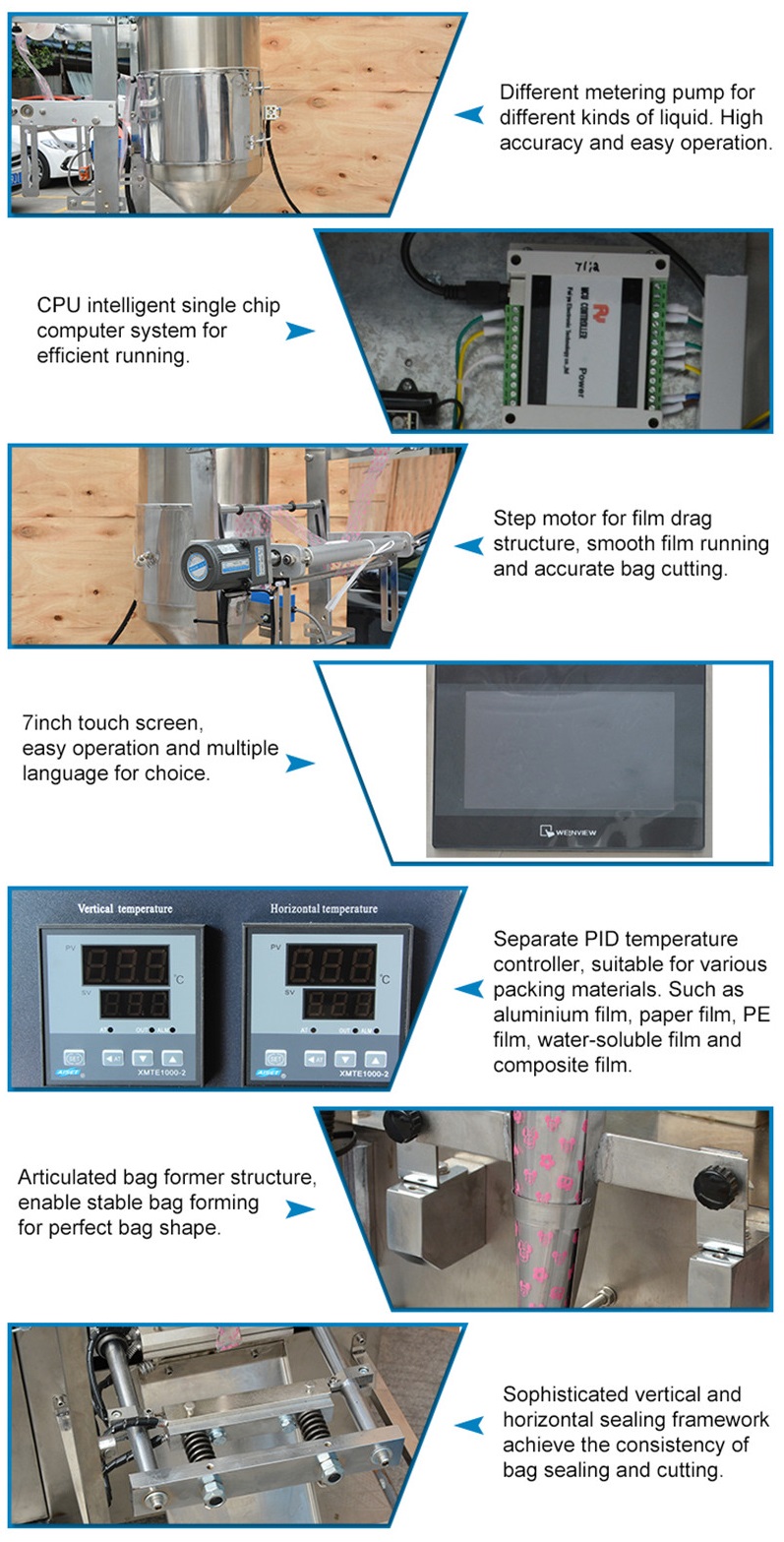

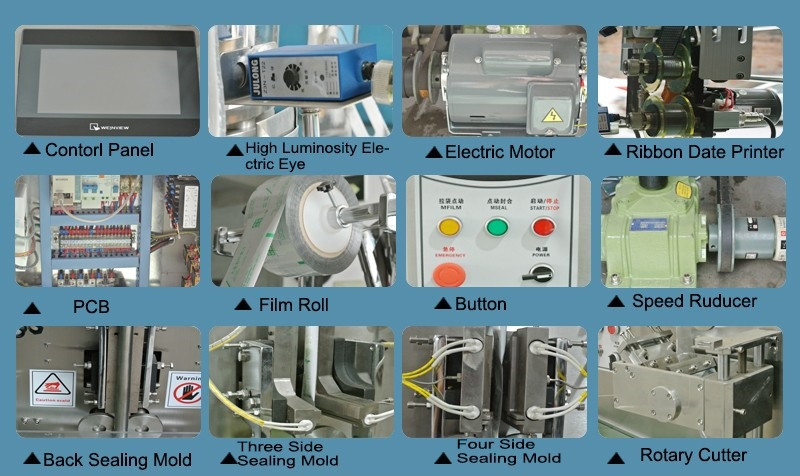

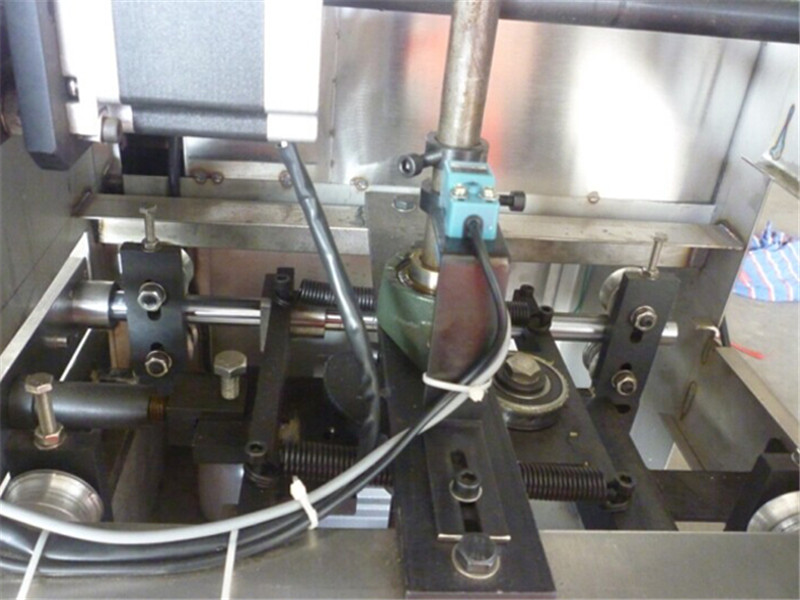

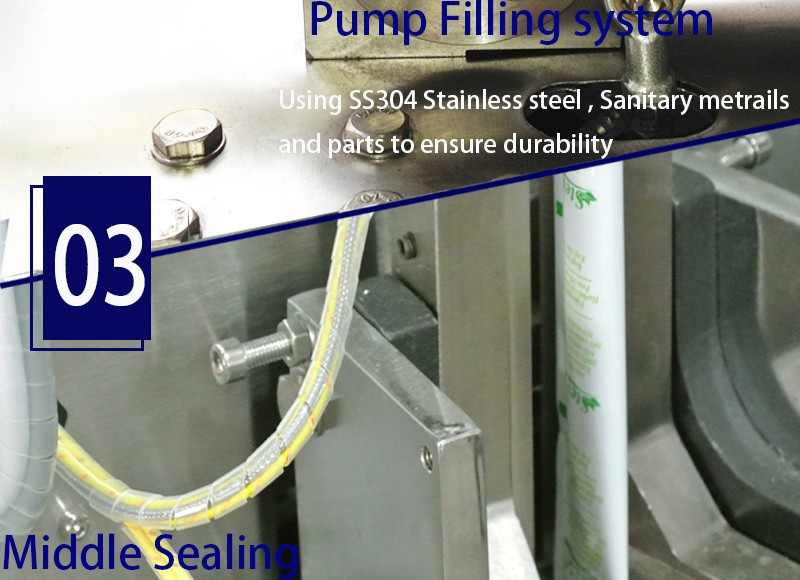

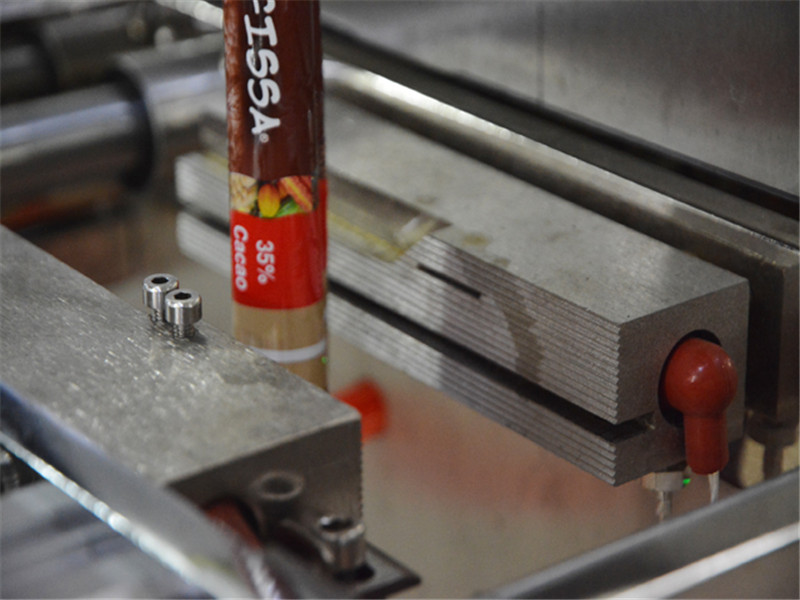

5. machines in details

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

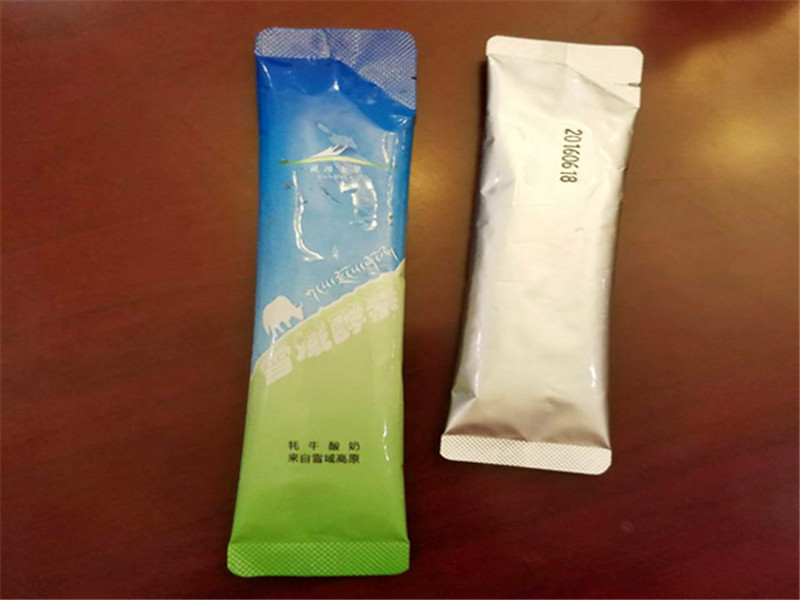

6.samples after packaging:

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

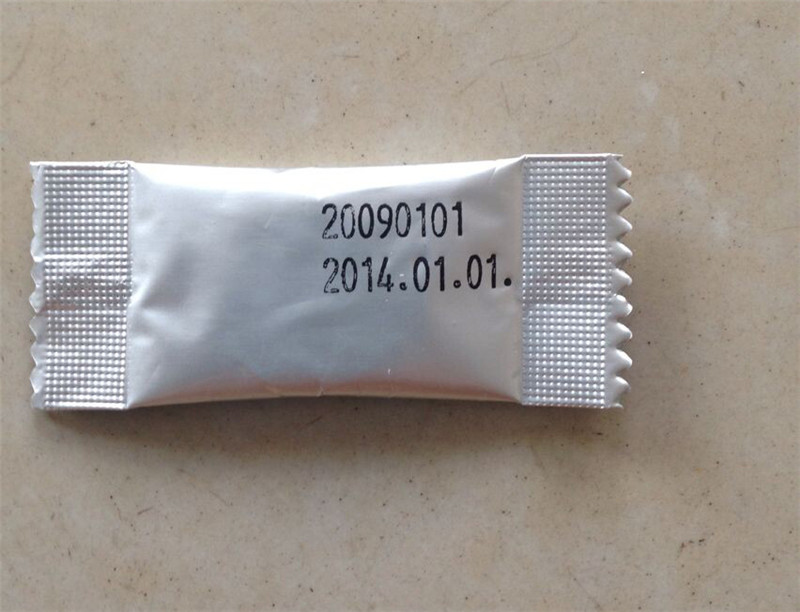

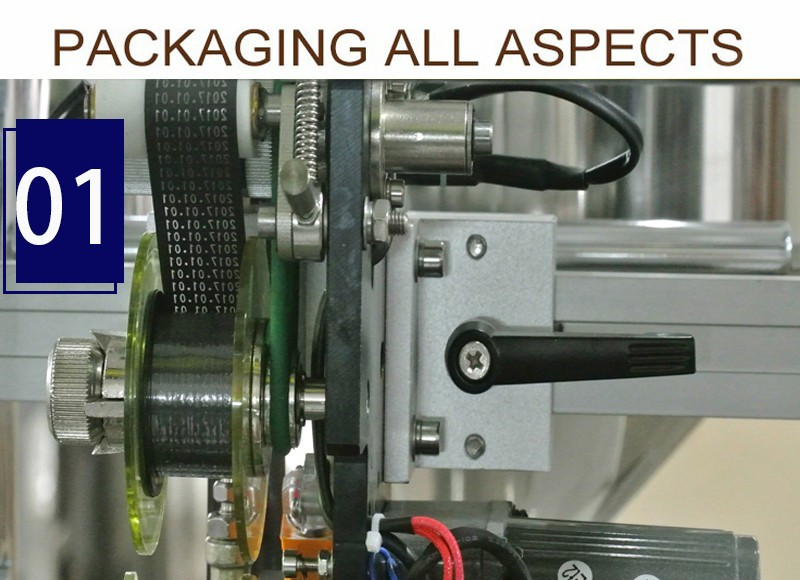

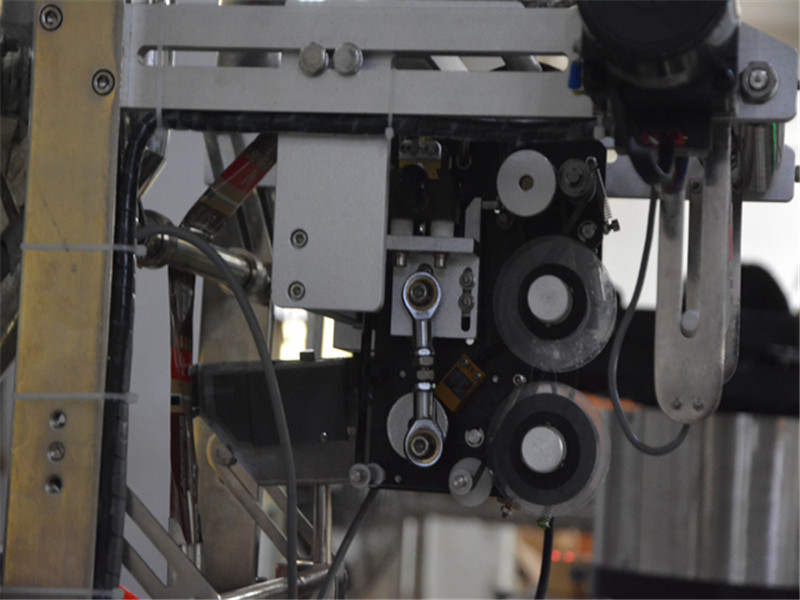

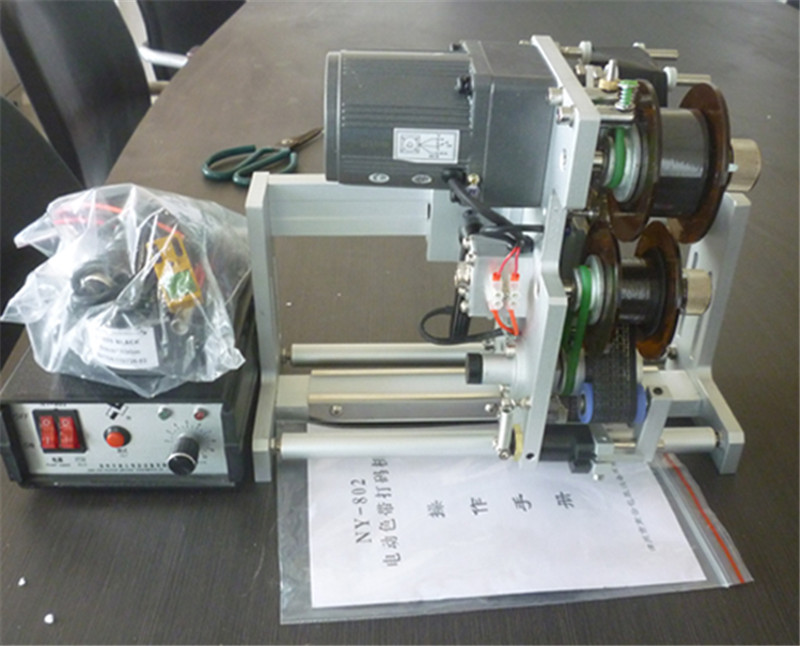

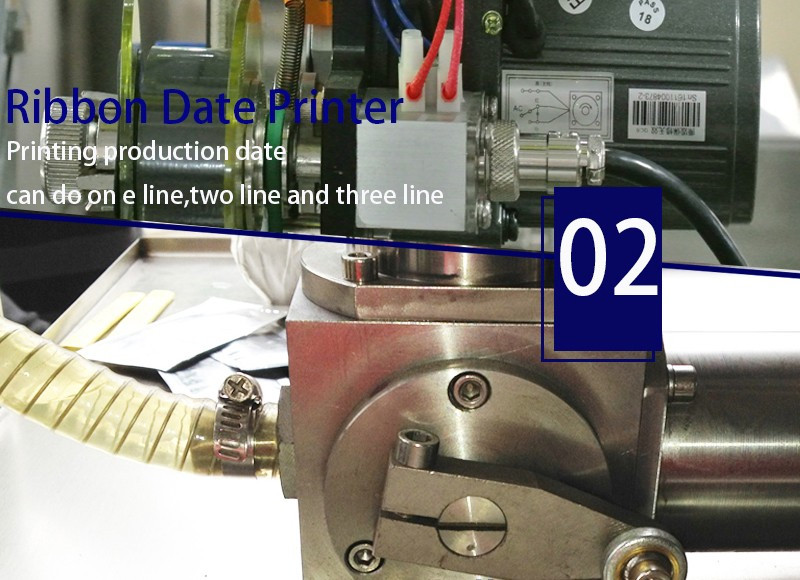

7.Ribbon date coding equipped with the liquid packing machine&date-coding effect :

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

8.How to run the machine in a safe way:

Filling bottling line,Capper,Sealer,Labeler,Packaging machinery

1.Check if there be the foreign objetct around or on the machine;
2.Never touch the machine with any part of your body including hand head or clothes during running the machine;
3.Never put your hands or toolings into the sealing knife when machine is in operation;
4.It is forbidden to switch the operation buttons from one to another; Never chang the parameter setting in random;
5.Never running the machine for more than 48hours in high speed;
6.Never allowing two operators to operate the machine at the same time; Turn off the power during maintenance of machine; When more than one person maintain the machine it is necessory to
Communicate and warn others before doing the important operation;
7.Let the electrician do the check and repair for the machine; The programm is locked lest the machine get the random change;
8.Any one untrained or ineligible to operate the machine is not permitted to run the packing machine; Never allow anyone in fatigue or drinking to operate the machine;
How to maintain the machine and clean the equipment:
1.Clean the residue in the pipe when stopping the machine; If necessory to clean the machine use the brush for complete cleaning; Keep the machine in dry and clear;
2.Check the parts of machine in a certain period; Keep the mechanical parts lubricative with the 20# lubricating oil;
3.Check the heating and sealing part to make sure there be no the foreign object; If there is the scale on the sealing and heating knife it will effect the thermal conductivity causing the higher temperature in the copper which results in the failed sealing bags;
4.Cut off the power to solve the problem during running the machine;
5.The machine running circumstance below Zero must be heated to melt the ice inside the constant pump and pipes in case the joint handle of machine be broken;
6.The film thickness to match the machine should be 80micrometer . the roll of film should be controlled below 18KG(film inner diameter 320mm or less); The heat sealing temperature stays no more than 260;
